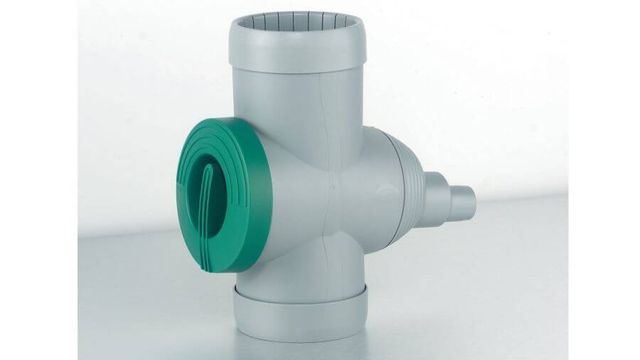

Key Features

• Easy to remove and clean filter and diverter
• Suitable for 68mm to 110mm round or 65 to 75mm square pipes
• Filter Collector leads clean water to the storage tank with high efficiency under normal rainfall (85 to 95%)
• The filter can act as the overflow outlet for the tank once filled with 2 positions open or closed
• Integrated mesh filter sieve, made of stainless steel (mesh size 0,7 x 1,7 mm)
• Colours: black, white, brown and grey
• Designed for roof areas up to 70 m²
• Made of high quality durable plastic
• Outlet size 50mm or 32mm
• Not Suitable for large 800L tank or wall tank which has back nut connection. Suitable for all other types

Connection kit (option)

• 30cm length of spiral suction hose for connecting from filter to water butt
• includes tank connections and hose clip

Technical Diagram

1. Reduction from 68 - 100 mm
2. Connector for downpipes 110mm
3. Outlet connection at 75mm
4. Adapter for connection 50mm/32mm
5. Guiding Plates
6. Stainless steel filter mesh
7. Settings for open/closed conditions
