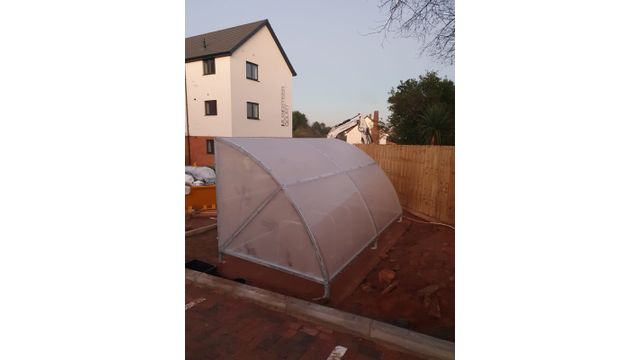

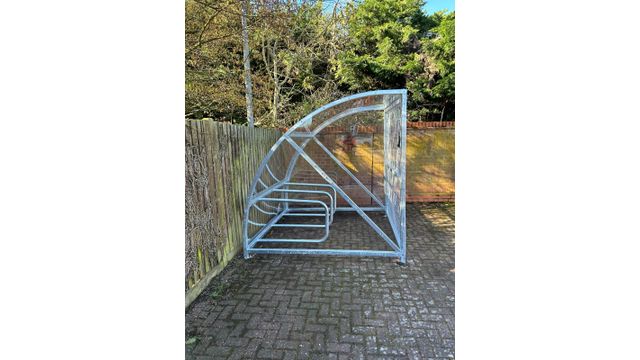

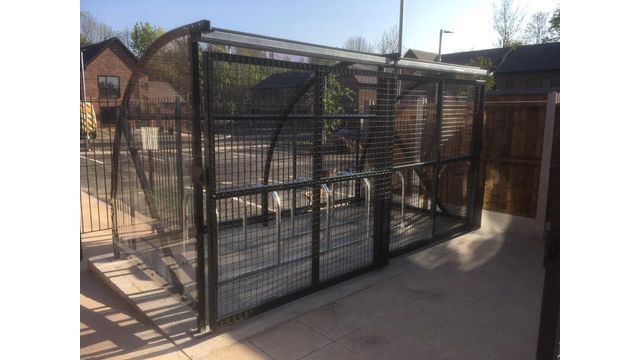

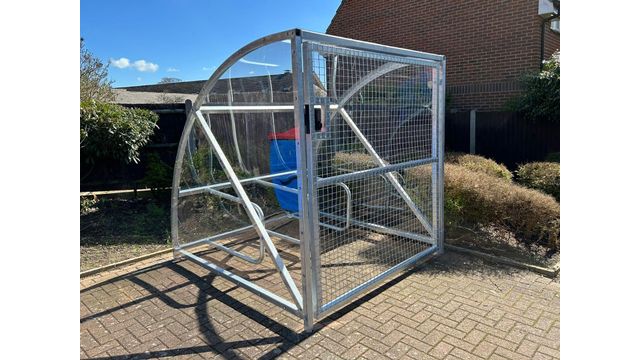

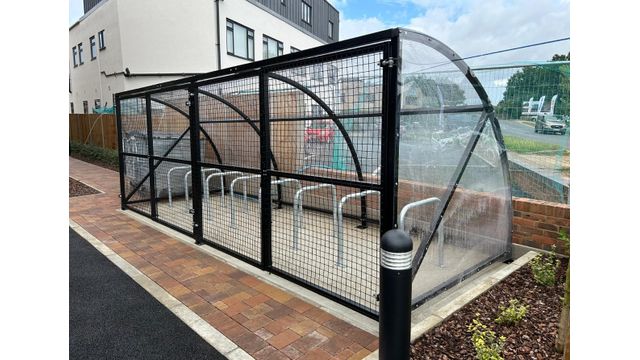

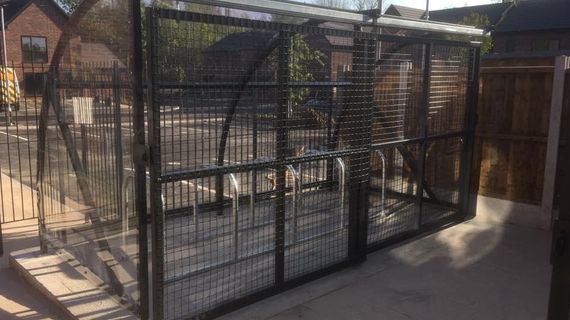

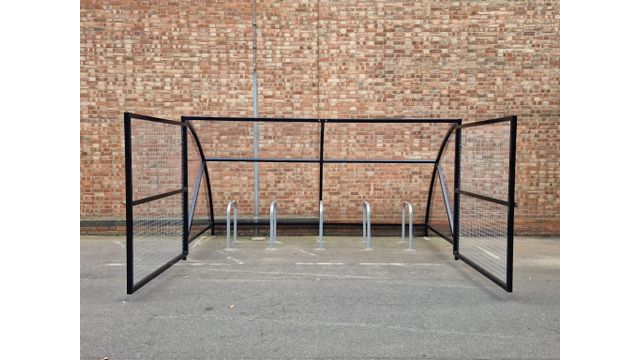

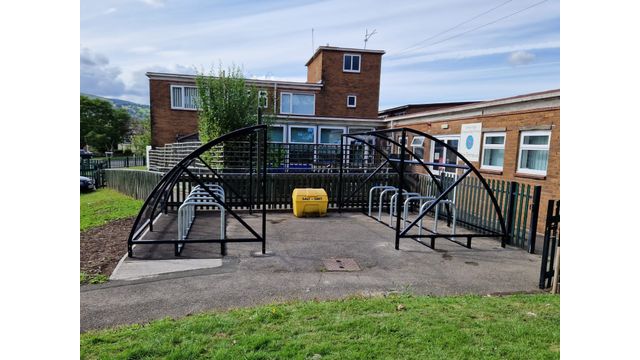

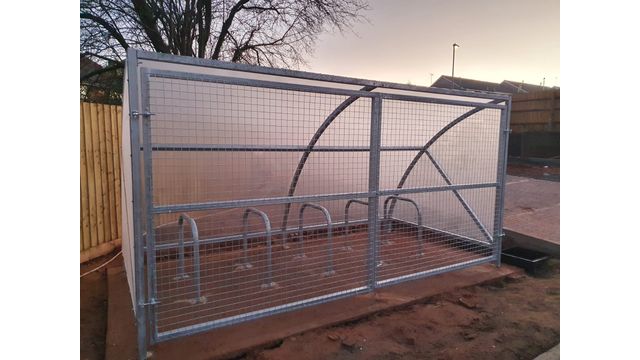

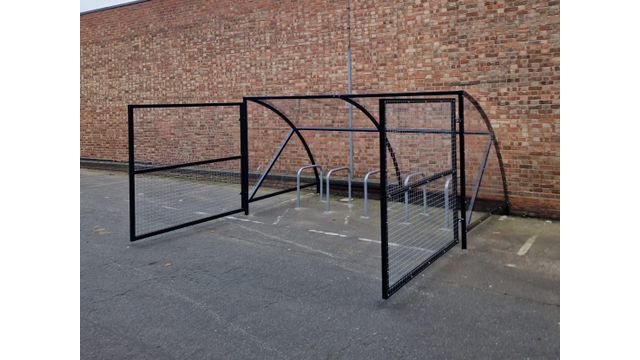

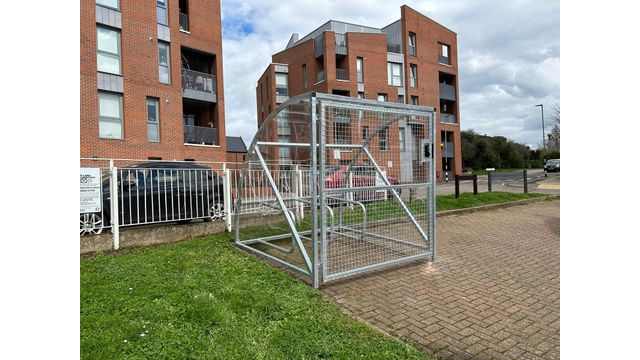

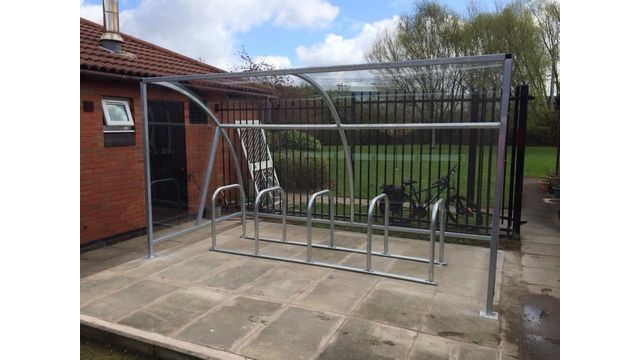

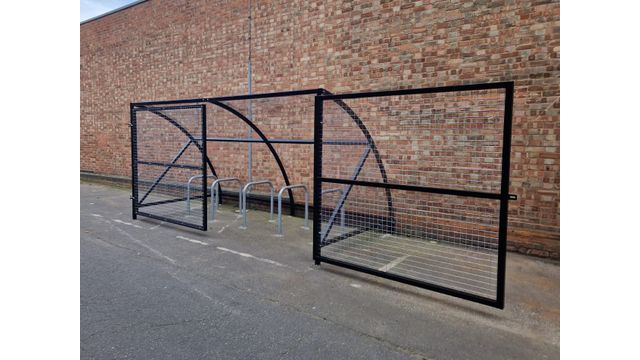

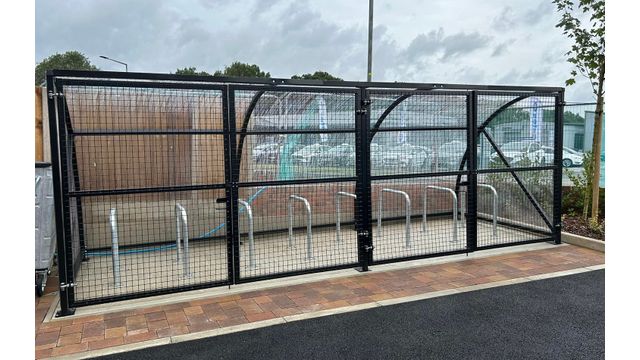

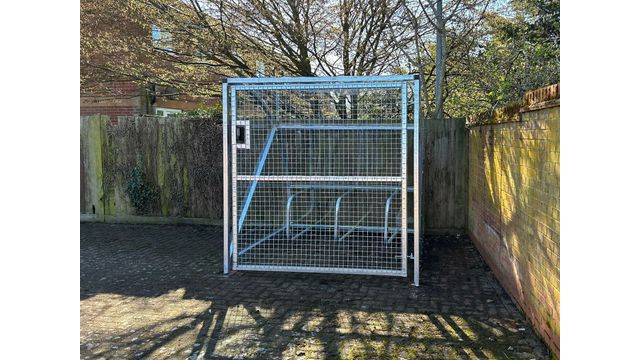

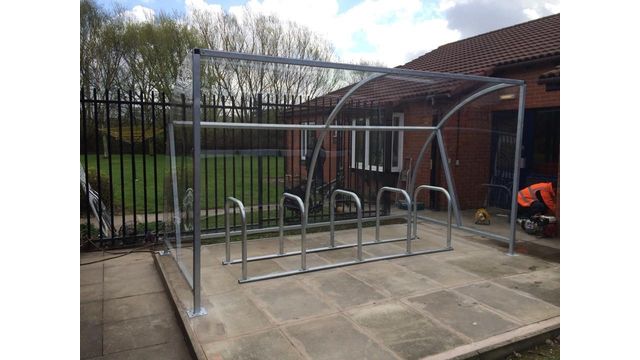

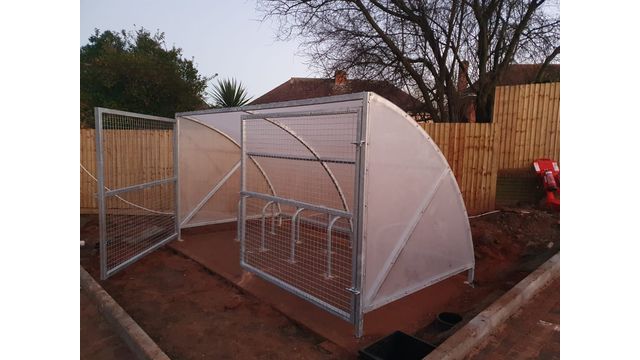

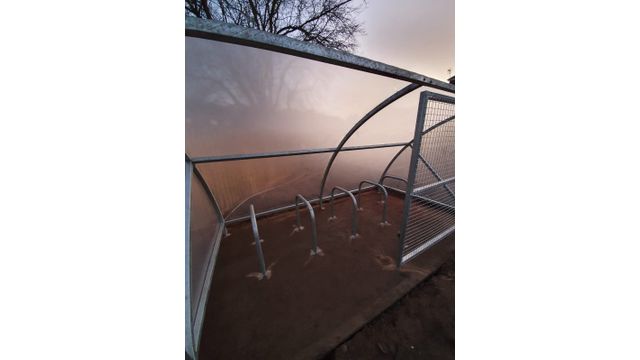

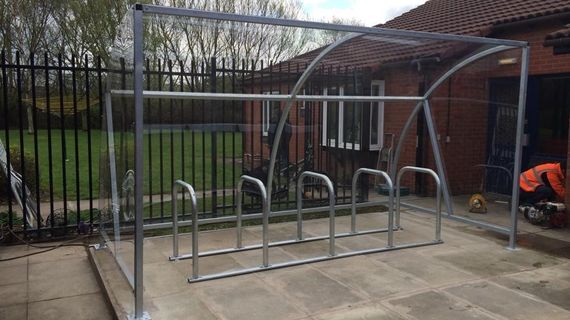

The Canal curve shelter with simple to use sheffield toast rack.
Shelter specification
- 50mm x 50mm x 3mm mild steel box frame construction
- Hot dip galvanised to BS EN ISO 1461:1999
- SECURE - No crawl perimeter

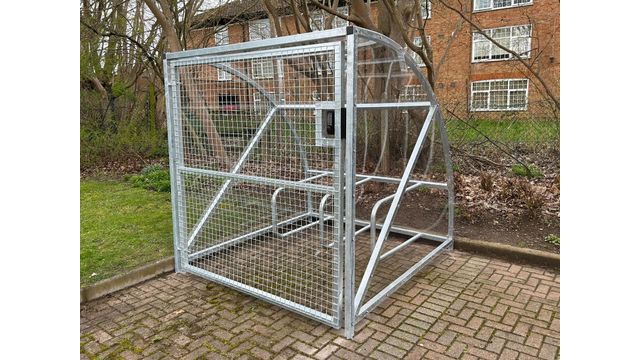

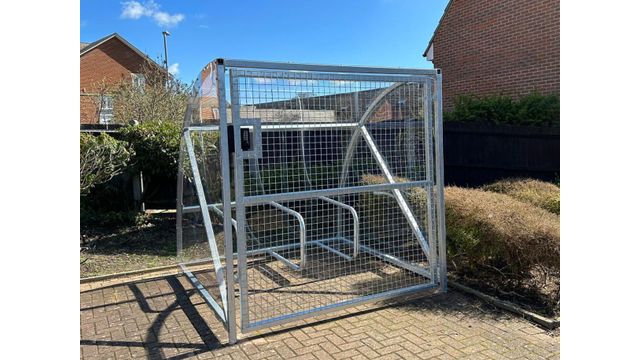

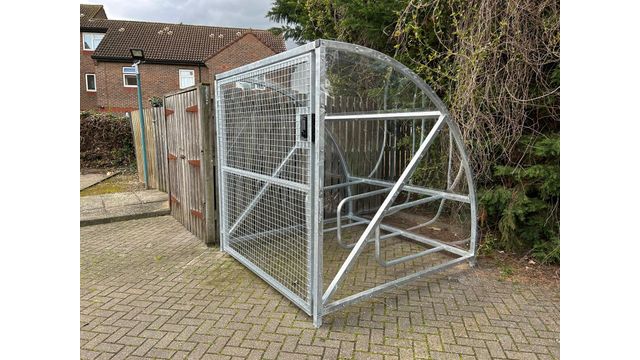

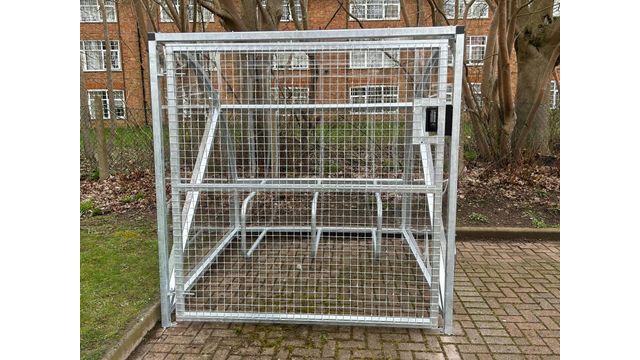

- SECURE - hinged anti-lift Gates
- Complies with Code for Sustainable Homes requirements

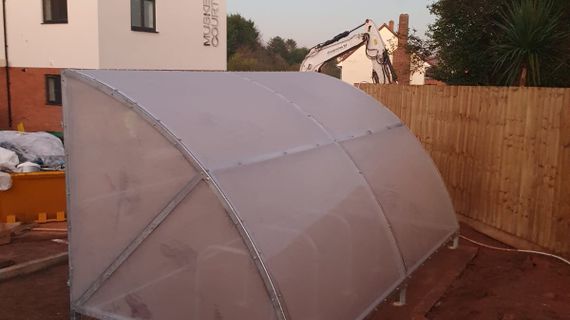

- Polycarbonate shelter which is anti-vandal and UV resistant
- Multiple door locking options
- Choose a RAL powder coat colour
- Can be surface or root fixed

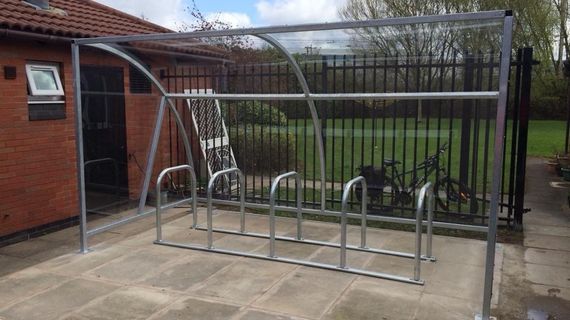

- Includes sheffield toast rack for bikes
Bike spaces |
Width (mm) |
6 |
2,100 |
8 |
3,100 |
10 |
4,100 |
12 |
4,600 |
14 |
5,000 |
16 |
6,150 |
20 |
8,100 |
30 |
12,200 |
40 |
16,400 |
50 |
20,300 |
All shelters approximately 2,150mm high and 2,100mm deep.

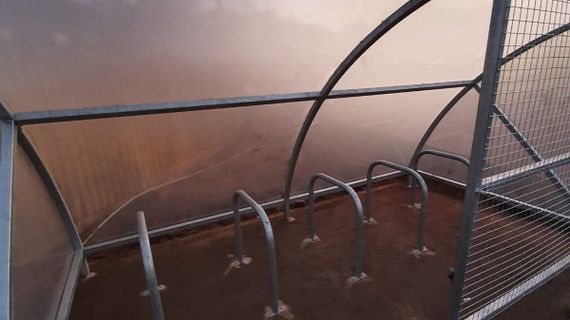

Sheffield toast rack specification
- Sheffield toast rack provides a cost effective stand which can also be used to lock a bike to
- SECURE - 3mm thick mild steel (to comply with Code for sustainable homes and Secured by design requirements)
- Hot dip galvanised to BS EN ISO 1461:1999
- 750mm deep, 800mm high
- Surface mounted using SECURE one way ground anchor bolts
- Can be powder coated upon request
